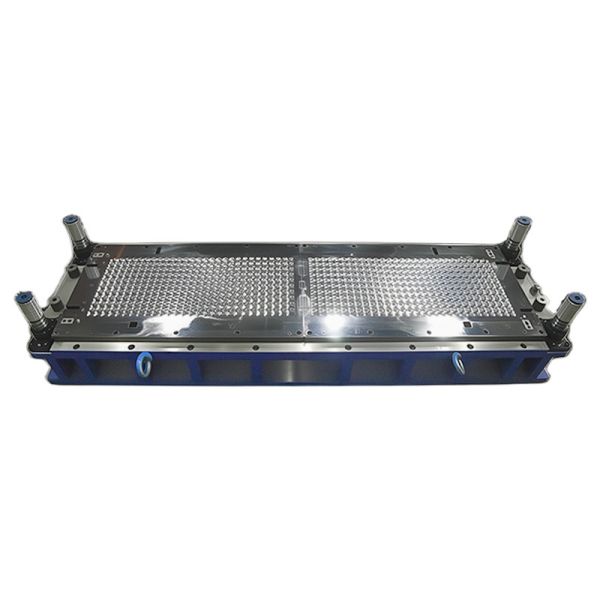

SUS430 7T Progressive Metal Stamping Sheet Mould 2 Million Shots Stamping Die Design

Brand Name : IDO

Model Number : washing machine drum

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Part Name : Washing machine drum sheet

Part Material : SUS430

Mould Type : Stage mold

Mould Size : 2100*800*560mm

Mould Weight : 7T

Punch Tonnage : 250T

Mould Life : 1,000,000 shots

Standard Parts Brand : MISUMI

Contact Now

Metal Stamping Die SUS430 Stage Die For Washing Machine Drum Sheet Mould Life 2 Million Shots

Description:

The High-Precision, Long-Life, Cost-Efficient Metal Stamping Die – Stage Die for Washing Machine Drum Sheet is engineered to deliver accurate forming and consistent quality. Its robust design ensures extended service life and reduced maintenance costs, supporting high-volume production with reliable performance.

Quick Detail:

Cycle: 6–14s depending on product type.
Repairs completed within 30 minutes; tools swapped in 15 minutes.
Punch edges require sharpening after 300k–500k shots.
Software manages all die movements.
One press table and tool set sufficient for cabinet production, lowering costs.
Maintenance only requires sub-die removal.
One tool set can handle multiple models; tool change via program.

Specifications:

Mould/Tool Type	Stage tool/mould/die
Production Application	White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material	Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material	V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base	SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance	±0.003mm
Hardness	Upon request
Surface Treatment	TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining	CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments	CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format	DWG, STP, STEP, X_T, IGES, PDF
Design Software	Auto CAD, UG, Solidworks
Trade terms	FOB (Shanghai)
Mould Lead time	Generally 6~8 weeks (as per actual situation)
