Refrigerator Cabinet Bottom Progressive Die Tooling ±0.003mm Tolerance Custom Stamping Dies

Brand Name : IDO

Model Number : refrigerator cabinet bottom

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Part Name : Refrigerator cabinet bottom

Part Material : DC51D

Mould Type : Stage mold

Mould Size : 1300*1000*600mm

Mould Weight : 2T

Punch Tonnage : 200T

Mould Life : 1,000,000 shots

Standard Parts Brand : MISUMI

Contact Now

DC51D Metal Stamping Die Stage Die For Refrigerator Cabinet Bottom ±0.003mm Tolerance

Description:

Our Premium Stage Die delivers reliable and precise stamping for refrigerator cabinet bottoms. Engineered for consistency and durability, it ensures every panel meets the highest quality standards. The die enhances production efficiency by streamlining the stamping process while minimizing material waste. With robust construction and smooth operation, it provides repeatable accuracy and superior performance for modern manufacturing environments. Perfect for high-volume production, this stage die combines speed, reliability, and precision to elevate your output quality.

Quick Detail:

  • Cycle period: 6–14s according to product type.
  • Fast repair achievable in 30 minutes, tool change in 15 minutes.
  • Punch edges sharpen after 300,000–500,000 strokes.
  • Each die’s movement is software-regulated.
  • One press table and tool set is enough to produce cabinets, cutting costs.
  • Sub-dies can be removed individually for maintenance.
  • One tool set supports multiple models; program enables tool changeover.

Specifications:

Mould/Tool Type
Stage tool/mould/die
Production Application
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base
SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance
±0.003mm
Hardness
Upon request
Surface Treatment
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining
CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format
DWG, STP, STEP, X_T, IGES, PDF
Design Software
Auto CAD, UG, Solidworks
Trade terms
FOB (Shanghai)
Mould Lead time
Generally 6~8 weeks (as per actual situation)

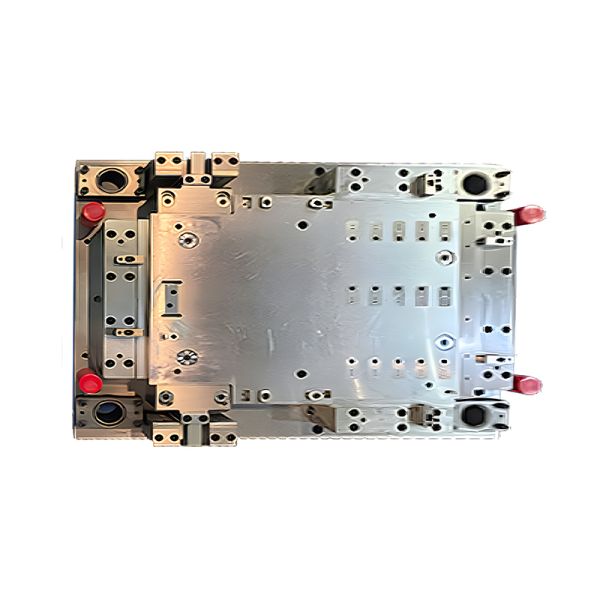

Refrigerator Cabinet Bottom Progressive Die Tooling ±0.003mm Tolerance Custom Stamping Dies

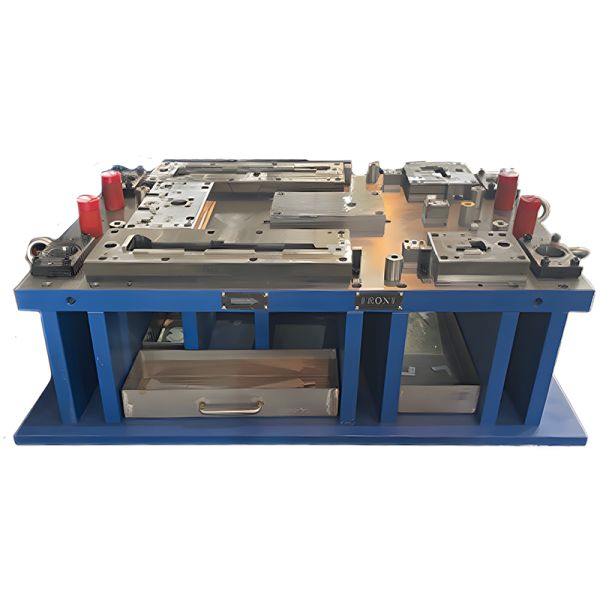

Refrigerator Cabinet Bottom Progressive Die Tooling ±0.003mm Tolerance Custom Stamping Dies
