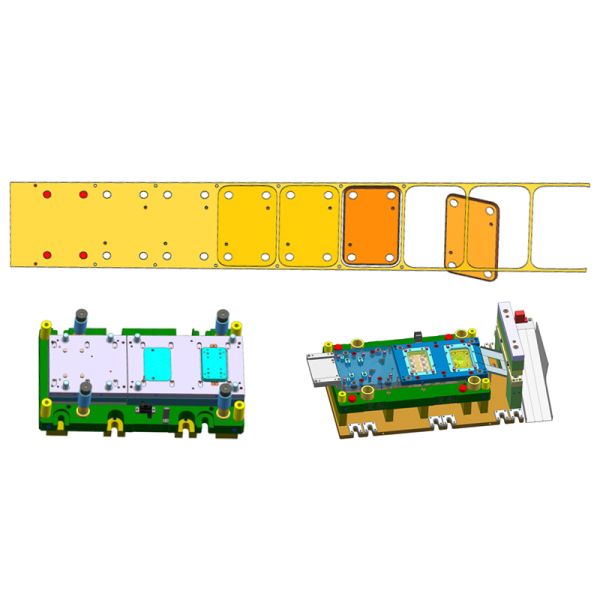

4045 Automotive Stamping Die Auto Parts Mould For Oil Cooler Progressive Die

Brand Name : IDO

Model Number : automotive oil cooler

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Part Name : Automotive oil cooler

Part Material : 4045

Mould Type : Progressive die

Mould Size : 1000*650*560mm

Mould Weight : 1T

Punch Tonnage : 200T

Mould Life : 1,000,000 shots

Standard Parts Brand : MISUMI

Contact Now

4045 Automotive Stamping Die for Oil Cooler Progressive Die

Description:

Introducing our Automotive Metal Stamping Progressive Die – built for speed, precision, and reliability in oil cooler production. Achieve perfectly stamped components every time, cut down waste, and supercharge your manufacturing efficiency.

Quick Detail:

Cycle: 6~14s (determined by product characteristics)
Fast repair within 30 minutes; fast tool change within 15 minutes
Punch edge sharpening: after 300,000~500,000 shots
Use software to control the movement of each die.
To produce cabinet, only needs one set of press table and tools, which can reduce equipment cost.
Only need to dismantle the sub-die when repairing or maintenance, without dismantling whole structure.
One set of tools can produce several models. The tool changeover can be realized through program.

Specifications:

Mould/Tool Type	Progressive tool/mould/die
Production Application	White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material	Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material	V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base	SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance	±0.003mm
Hardness	Upon request
Surface Treatment	TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining	CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments	CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format	DWG, STP, STEP, X_T, IGES, PDF
Design Software	Auto CAD, UG, Solidworks
Trade terms	FOB (Shanghai)
Mould Lead time	Generally 6~8 weeks (as per actual situation)

4045 Automotive Stamping Die Auto Parts Mould For Oil Cooler Progressive Die
