SP810NC Automotive Stamping Die Stage Die For Heat Insulation Cover Automotive Injection Molding

Brand Name : IDO

Model Number : automotive heat insulation cover

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Part Name : Heat insulation cover

Part Material : SP810NC

Mould Type : Stage mold

Mould Size : 800*700*450mm

Mould Weight : 1T

Punch Tonnage : 160T

Mould Life : 1,000,000 shots

Standard Parts Brand : MISUMI

Contact Now

Automotive Stamping Die SP810NC Stage Die For Heat Insulation Cover With Quick Die Change

Description:

Our Top-Quality Stage Die is specially designed for modern heat insulation cover stamping, delivering precision and reliability with every cycle. Engineered for durability and smooth operation, it streamlines the stamping process to maximize efficiency and minimize waste. Built to meet today’s production demands, this die ensures consistent, high-quality results while boosting output and reducing downtime. Perfect for manufacturers seeking speed, accuracy, and performance in heat insulation cover production.

Quick Detail:

  • Each production cycle takes 6–14s depending on the product.
  • Repairs complete in 30 minutes; tool changes in 15 minutes.
  • Punch edges require sharpening after 300,000–500,000 uses.
  • Die movements are controlled through software.
  • Producing cabinets needs just one press table and tool set, lowering costs.
  • Sub-dies alone are removed for maintenance.
  • One tool set can produce multiple models, with program-based changeovers.

Specifications:

Mould/Tool Type
Stage tool/mould/die
Production Application
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base
SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance
±0.003mm
Hardness
Upon request
Surface Treatment
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining
CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format
DWG, STP, STEP, X_T, IGES, PDF
Design Software
Auto CAD, UG, Solidworks
Trade terms
FOB (Shanghai)
Mould Lead time
Generally 6~8 weeks (as per actual situation)

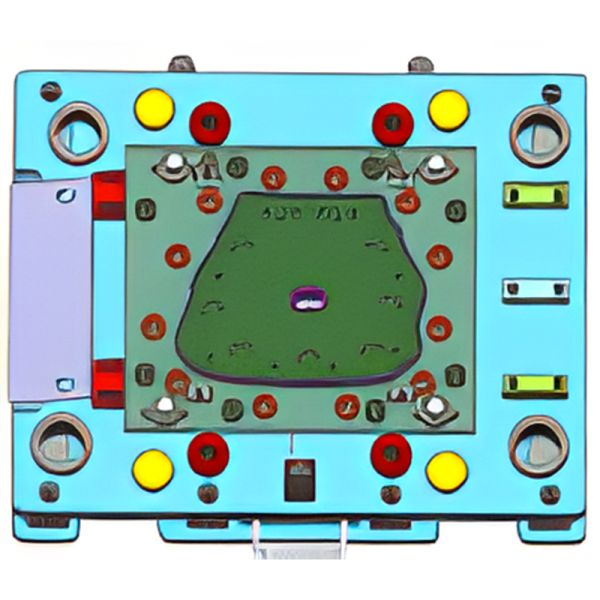

SP810NC Automotive Stamping Die Stage Die For Heat Insulation Cover Automotive Injection Molding

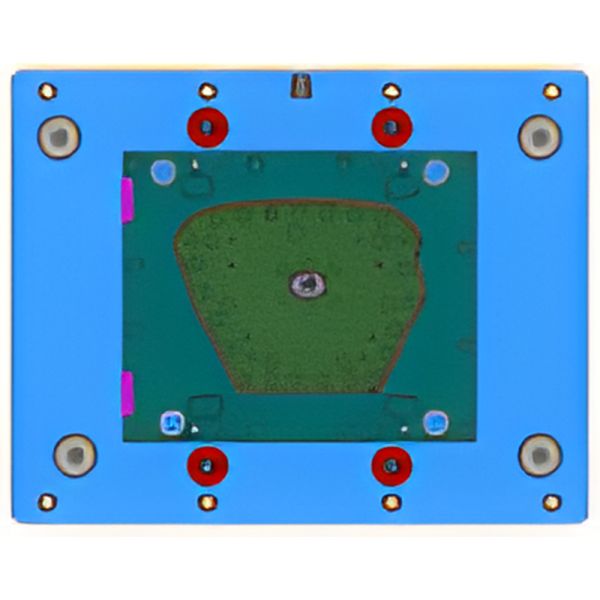

SP810NC Automotive Stamping Die Stage Die For Heat Insulation Cover Automotive Injection Molding
