950mm 1T Steel Stamping Dies Refrigerator Compressor Traverse Cnc Stamping Die

Brand Name : IDO

Model Number : refrigerator compressor traverse

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Part Name : Refrigerator compressor traverse

Part Material : DC52D

Mould Type : Stage mold

Mould Size : 950*550*450mm

Mould Weight : 1T

Quality management system : ISO 9001

Processing Method : Punching and Shearing Mould

Driving Motor Type : Permanent Magnet

Contact Now

950×550×450mm Stage Die for Refrigerator Compressor Traverse Steel Stamping Dies

Description:

The 950×550×450mm Stage Die for Refrigerator Compressor Traverse Steel Stamping Dies is designed for precise and efficient sheet metal forming. Made from high-quality steel, this stage die ensures accurate shaping of refrigerator compressor traverse components with tight tolerances and reliable performance. Its compact yet robust design supports heavy-duty production, making it an ideal solution for appliance manufacturers seeking durable, high-precision, and high-efficiency stamping tooling.

Quick Detail:

Operating cycle: 6–14s, determined by product.
Fast repair in 30 minutes; tool replacement in 15 minutes.
Punch edges need sharpening after 300k–500k strokes.
Software manages each die movement.
Producing cabinets requires only one press table and tool set, saving costs.
Sub-dies removed for maintenance only.
One tool set can produce multiple models; changeover via program.

Specifications:

Mould/Tool Type	Stage tool/mould/die
Production Application	White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material	Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material	V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base	SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance	±0.003mm
Hardness	Upon request
Surface Treatment	TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining	CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments	CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format	DWG, STP, STEP, X_T, IGES, PDF
Design Software	Auto CAD, UG, Solidworks
Trade terms	FOB (Shanghai)
Mould Lead time	Generally 6~8 weeks (as per actual situation)

950mm 1T Steel Stamping Dies Refrigerator Compressor Traverse Cnc Stamping Die

Product Tags:

950mm Steel Stamping Dies

1T Steel Stamping Dies

cnc stamping die 500k strokes

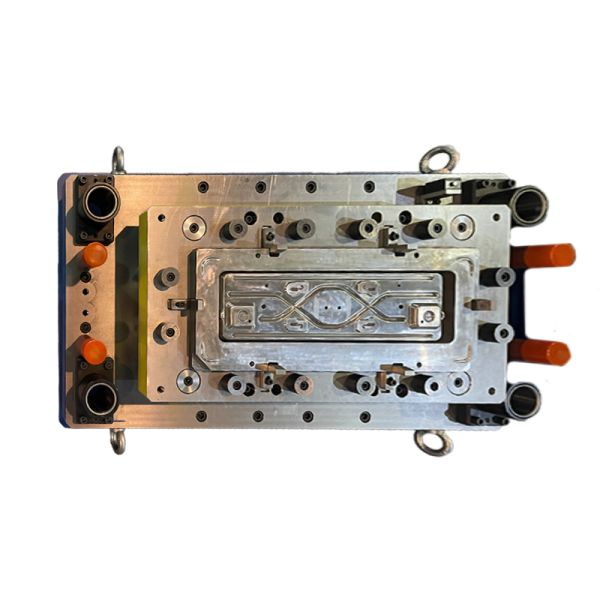

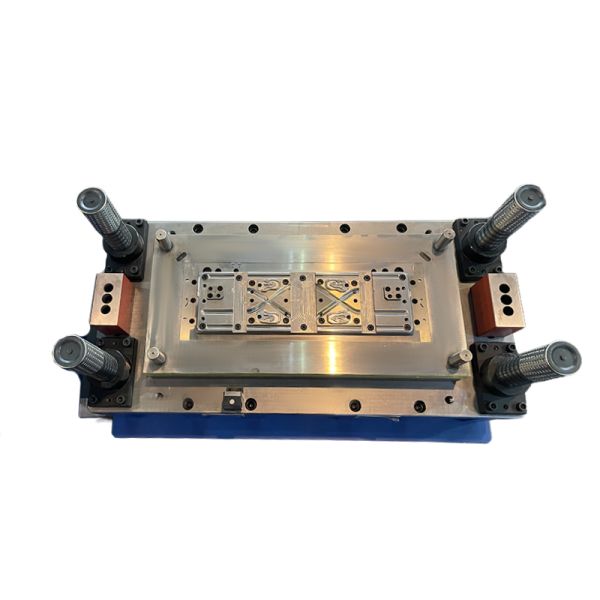

950mm 1T Steel Stamping Dies Refrigerator Compressor Traverse Cnc Stamping Die Images
