Washing Machine Side Panel Stage Die 3T 1300x700x560mm Precision Stamping Die ASSAB88

Brand Name : IDO

Model Number : washing machine side panel

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

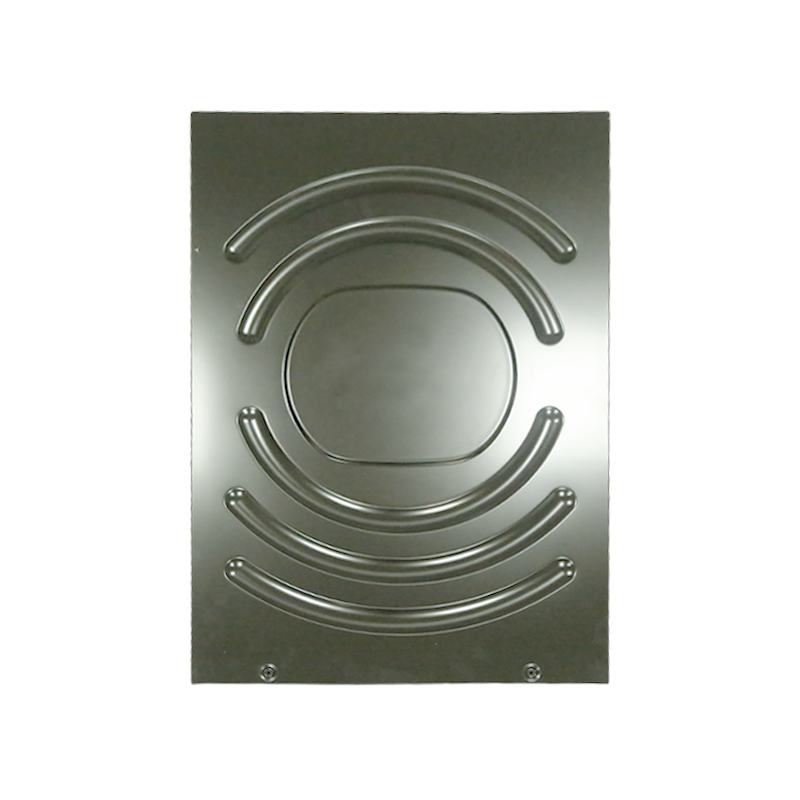

Part Name : Washing machine side panel

Part Material : DC52D-PCM

Mould Type : Stage mold

Mould Size : 1300*700*560mm

Mould Weight : 3T

Manufacturing Technology : Computer Technology

Mold Cavity Technology : CNC Milling

Parts Detection Method : Measurement of Three Axis NC

Contact Now

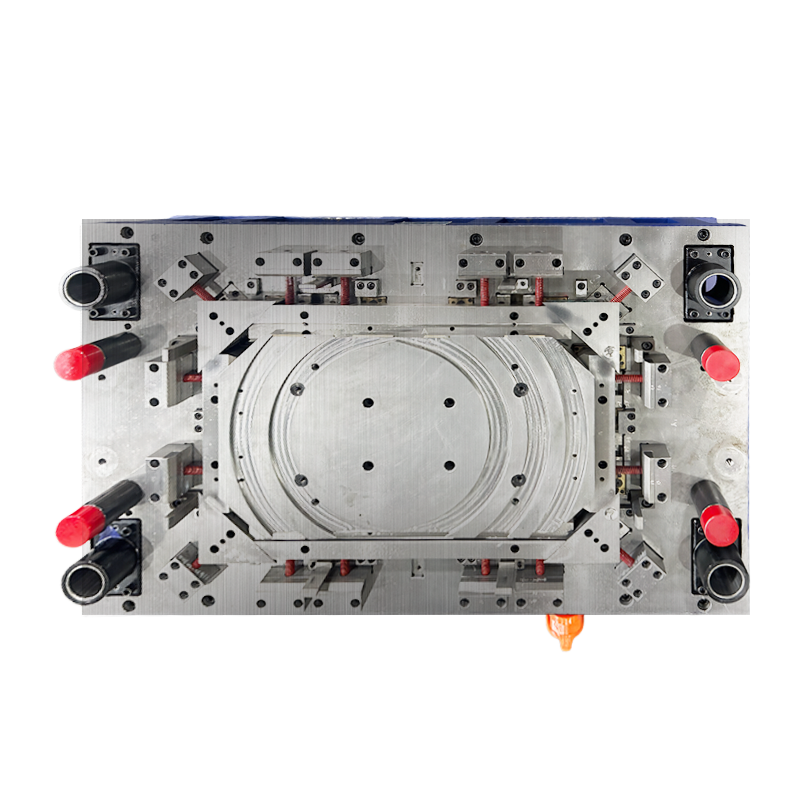

Washing Machine Side Panel Stage Die With 3T Mould Weight Steel Stamping Die

Description:

The Washing Machine Side Panel Stage Die with 3T Mould Weight Steel Stamping Die is designed for precise and efficient sheet metal forming of washing machine side panels. Made from high-quality steel, this stage die ensures consistent shaping, tight tolerances, and long-lasting performance. With its robust 3-ton mould weight, it supports heavy-duty production, making it an ideal solution for appliance manufacturers seeking durable, high-precision, and reliable stamping tooling.

Quick Detail:

Cycle: 6–14 seconds, determined by product.
Fast repair within 30 minutes; tool change within 15 minutes.
Punch edges sharpened every 300k–500k shots.
Software controls each die movement.
Only one press table and tool set required for cabinets, reducing costs.
Maintenance involves sub-dies only.
One tool set can produce several models; changeover handled via program.

Specifications:

Mould/Tool Type	Stage tool/mould/die
Production Application	White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material	Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material	V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base	SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance	±0.003mm
Hardness	Upon request
Surface Treatment	TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining	CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments	CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format	DWG, STP, STEP, X_T, IGES, PDF
Design Software	Auto CAD, UG, Solidworks
Trade terms	FOB (Shanghai)
Mould Lead time	Generally 6~8 weeks (as per actual situation)

Washing Machine Side Panel Stage Die 3T 1300x700x560mm Precision Stamping Die ASSAB88
