Metal Progressive Die Tooling For Microwave Oven Top Upper Cover Stage Tooling

Brand Name : IDO

Model Number : microwave oven top

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Part Name : Microwave oven top

Part Material : DC51D+Z(T0.45)

Mould Type : Stage mold

Mould Size : 550*700*275.45mm

Mould Weight : 0.6T

Punch Tonnage : 200T

Mould Life : 1,000,000 shots

Standard Parts Brand : MISUMI

Contact Now

Metal Stamping Stage Tooling For Microwave Oven Top/Upper Cover

Description:

Engineered for precision and consistency, our Metal Stamping Stage Tooling is the ideal solution for producing high-quality microwave oven top/upper covers. This tooling system delivers exceptional accuracy and is built for high-volume production, ensuring every cover is formed with a perfect fit and flawless finish.

Quick Detail:

Cycle: 6~14s (determined by product characteristics)
Punch edge sharpening: after 200,000~300,000 shots
Cycle Time: The total time required for one complete stamping stroke.
Die Material: The specific grade of steel used for the die, like D2 or SKD11.

Metal Stamping Tooling Released Commercial Components Brands:

Item		Option 1	Option 2	Option 3
1	Standard piercing punches (with or without ejectors)	MISUMI	DAYTON	FIBRO
2	Standard piercing matrix	MISUMI	DAYTON	FIBRO
3	Guide elements columns, bushes, die sets (precision plates)	MISUMI	FIBRO	DANLY
4	Sliding wear plates (bronze plus graphite)	MISUMI	FIBRO	DAYTON
5	Cam mechanisms	MISUMI	FIBRO	OMCR
6	Coil steel springs	MISUMI	FIBRO	SPECIAL SPRINGS
7	Nitrogen gas springs	MISUMI	KALLER	SPECIAL SPRINGS
8	Screws,fastener, pins, stripper bolts,	MISUMI	FIBRO	DAYTON
9	Spring guide pins, pilots, ejectors ,stock lifters, pad retainer, pilot shedders	MISUMI	FIBRO	DAYTON
10	Rotary bending mechanisms	MISUMI	DAYTON
11	Lifting elements / rotary eyebolts	MISUMI	FIBRO	DAYTON
12	Pneumatic valves and electrovalves	MISUMI	FESTO	SCHMALZ
13	Scraps pneumatic evacuator/shakers	MISUMI	FIBRO
14	Electrical connectors	HARTING	HARTING	ILME
15	Tool Steel	ASSAB	ASSAB	GROEDITZ
16	PVD Coating	OERLIKON	OERLIKON
17	Tool Bronze	AMPCO	AMPCO

Metal Progressive Die Tooling For Microwave Oven Top Upper Cover Stage Tooling

Product Tags:

Metal progressive die tooling

0.6T progressive die tooling

550mm Stage Tooling

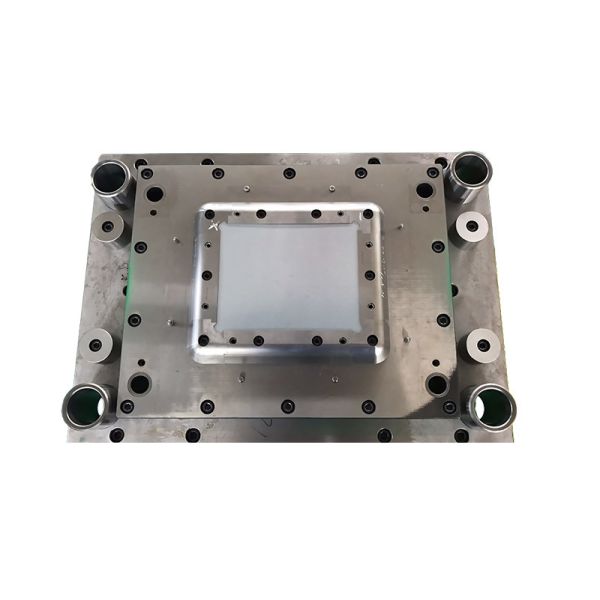

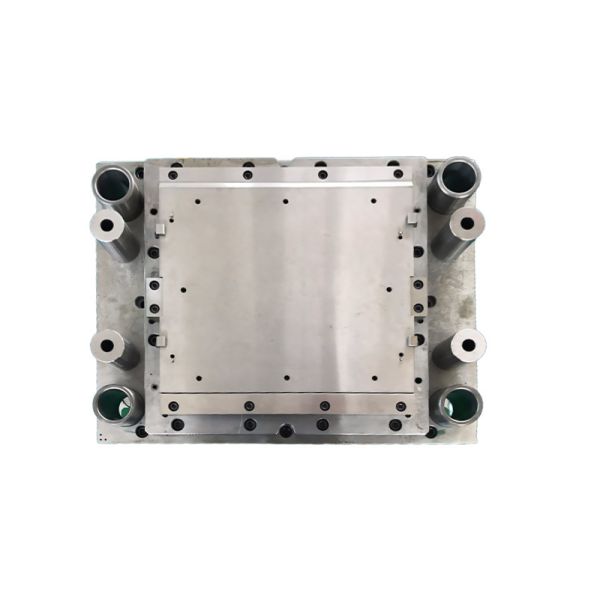

Metal Progressive Die Tooling For Microwave Oven Top Upper Cover Stage Tooling Images
